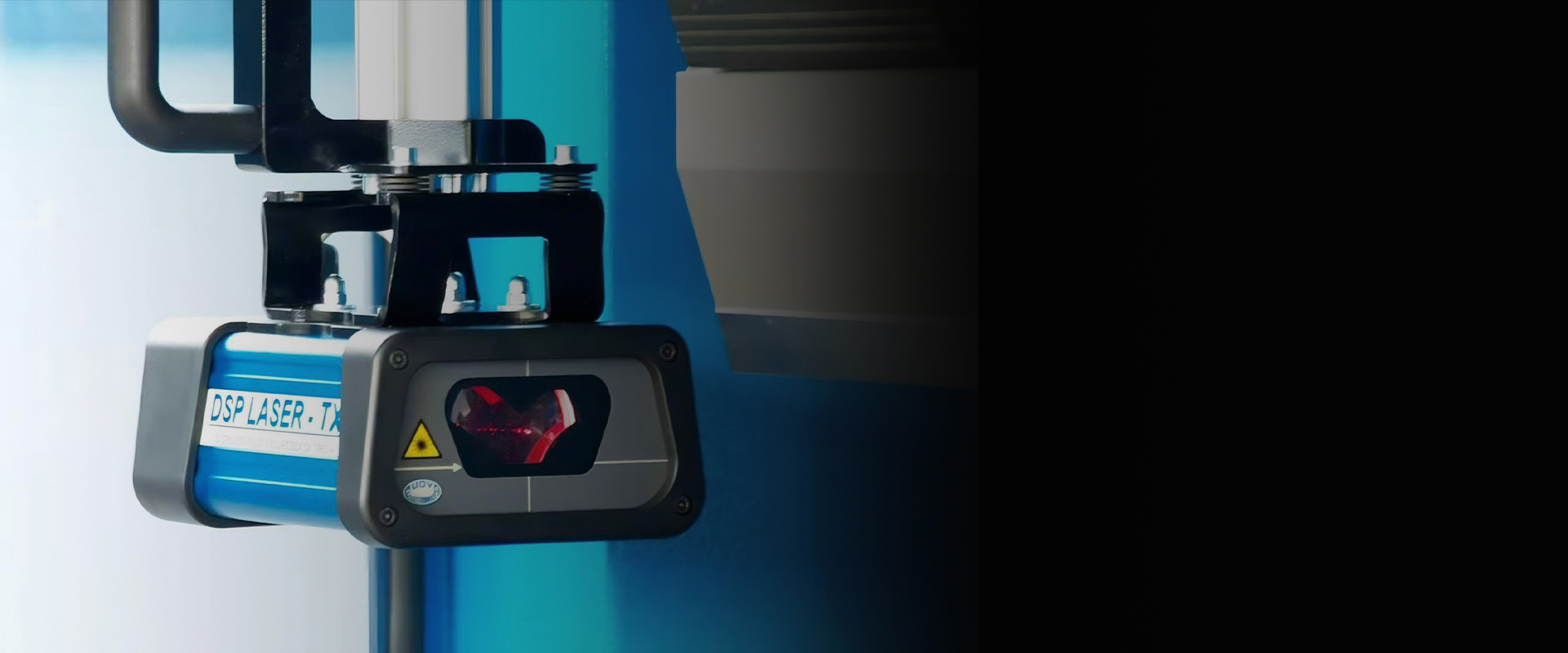

The DSP laser safety protection device comprehensively safeguards press brake operators' personal safety, preventing hazards from the machine's rapid slider movement. It creates a block-shaped protective zone around the bending tool tip, covering front, middle, and rear areas.
Laser light source visible 650 nm
Beam divergence: < 0,2 mrad
Laser classification: class 1 M
Dimensions of laser beam at TX output:Complex geometrical figure contained in a rectangle area 48mm X 24 mm
Maximum operating distance in standard atmosphere and absolute absence of fine dust:15 m
