Maximize your workspace and budget with the LISTEN small electric shearing machine. Designed for the practical fabricator, this portable mini shear is the ultimate tool for cleanly cutting thin-gauge copper, aluminum, and mild steel (up to 2mm). Ideal for small workshops, metal art studios, HVAC contractors, and serious DIY projects, it combines plug-and-play simplicity with the durability needed for on-site repairs and light production. Forget bulky, expensive industrial cutters—this compact powerhouse delivers precision, safety, and true affordability without compromise.
A Small Electric Shearing Machine (also known as a mini mechanical shear or electric guillotine) is a compact, motorized tool designed for precision cutting of thin-gauge sheet metal. Unlike large hydraulic systems, these machines utilize a direct-drive motor to provide high-speed, burr-free cuts on materials like mild steel (up to 2mm), aluminum, and copper. It is the optimal solution for workshops requiring portability and energy efficiency.
| Model | Cutting thickness | Cutting width | Cutting angle | No.of strokes (times/min) | Backstage range | Power of motor | Dimensions |
| (mm) | (mm) | (°) | (mm) | (kw) | (mm) | ||
| Q11G-2*600 | 2 | 600 | 1°30′ | 30 | 350 | 3 | 1200*640*1100 |
| Q11G-2*800 | 2 | 800 | 1°30′ | 30 | 350 | 3 | 1400*640*1100 |
| Q11G-2*1000 | 2 | 1000 | 1°30′ | 30 | 350 | 3 | 1600*640*1100 |
| Q11G-2*1300 | 2 | 1300 | 1°30′ | 30 | 350 | 3 | 1900*640*1100 |
| Q11G-2*1500 | 2 | 1500 | 1°30′ | 30 | 400 | 3 | 2100*640*1100 |
| Q11G-2*1600 | 2 | 1600 | 1°30′ | 30 | 400 | 3 | 2200*640*1100 |
| Q11G-1.2*2000 | 1.2 | 2000 | 1°30′ | 30 | 400 | 3 | 2600*640*1100 |
| Q11G-1.2*2500 | 1.2 | 2500 | 1°30′ | 30 | 400 | 3 | 3100*640*1100 |
Choosing the Right Shear: Electric vs. Manual vs. Hydraulic
Selecting the right shearing equipment is a balance between cutting capacity, production speed, and budget. While manual shears are limited by physical effort and industrial hydraulic machines are often over-engineered for light-gauge work, the LISTEN Small Electric Shearing Machine provides the perfect middle ground for precision and efficiency.
Use the table below to compare the technical and operational differences:
| Feature | LISTEN Small Electric Shear | Traditional Manual Shear | Industrial Hydraulic Shear |
| Power Source | Electric Motor (Standard Plug & Play) | Manual (Requires Physical Effort) | Complex Hydraulic Pump System |
| Max Cutting Capacity | Up to 2.0mm (Mild Steel / Aluminum) | Up to 1.0mm (Very Light Gauge) | 4mm to 30mm+ (Heavy Plate) |
| Production Speed | 30 Strokes/Min (High Efficiency) | Very Slow (Manual Dependent) | Moderate to High |
| Machine Footprint | Compact & Portable (Saves Space) | Small / Bench-mounted | Large / Heavy Fixed Installation |
| Energy Consumption | Low (30% Energy Saving Tech) | Zero | High (Continuous Power Draw) |
| Ease of Use | Foot Pedal Control (One-person Op) | Laborious / Tiring | Requires Professional Training |
| Best Application | HVAC, Metal Art, Small Workshops | DIY / Thin Crafting / Prototyping | Heavy Industrial Manufacturing |
Expert Verdict: If your workshop processes sheet metal between 0.5mm and 2mm on a daily basis, switching from a manual to an electric shearing machine can increase your output by over 300% while significantly reducing operator fatigue. For HVAC contractors and ductwork fabricators, it eliminates the high cost and massive footprint of a hydraulic shear while maintaining industrial-grade precision.

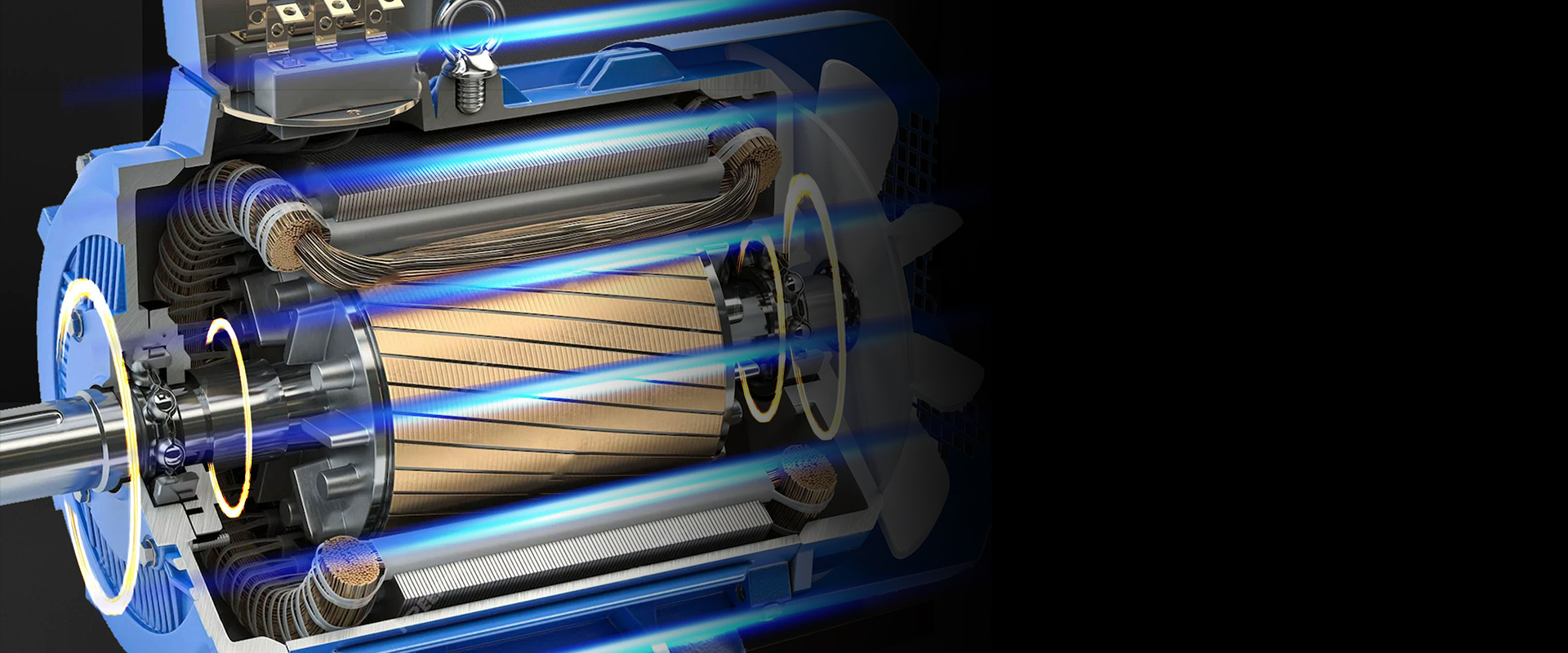

Copper Core Efficiency: Our motors are engineered for high-frequency use, reducing energy consumption by 30% while maintaining a consistent 30 strokes per minute.
High-Hardness Alloy Blades: Every machine is equipped with 9CrSi or Cr12MoV blades, heat-treated for longevity. This ensures clean edges on galvanized sheets and stainless steel strips without the need for constant regrinding.
Precision Backgauge: Includes a standard 350mm-400mm backstage range, essential for repeatable, accurate cuts in industrial HVAC prototyping.
Think of it as the perfect “first shear” or dedicated tool for light-gauge work. Our electric model excels at portability, low energy consumption (plugs into standard outlet), and affordability. It‘s ideal for cutting copper, aluminum, and mild steel under 2mm for prototypes, artwork, ductwork, or repairs. It is NOT designed for high-volume production cutting of thick plate (over 3mm) or stainless steel—for those, we recommend our hydraulic shearing machines. The key is matching the tool to your most frequent tasks to maximize value.
Yes, as the factory, we have flexibility. While our standard models cover the most popular sizes (up to 1600mm or 2500mm in length for thinner material), we can discuss custom bed lengths for larger projects. Motor voltage can be configured for 110V, 220V, or 380V/415V at the time of order. We also offer optional accessories like side extension tables for handling long sheets and front material supports, which can greatly improve safety and accuracy for solo operators.
Yes! Our electric small shearing machines can be configured for 110V or 220V single-phase power, making them perfect for small garages and workshops where 380V industrial power is not available.
It is designed for mild steel (up to 2mm), aluminum, copper, and even certain plastics or leather. However, for high-carbon or stainless steel over 1.2mm, we recommend checking with our technical team to ensure blade longevity.
Yes, LISTEN electric shears are shipped as Plug-and-Play units. You only need to connect the power and perform a quick blade gap check before starting your first project.
Electric shear cutters deliver energy-efficient metal processing with precision engineering. Advanced motor technology slashes energy costs by up to 30% while maintaining high-speed cutting performance. Smart power management and regenerative braking minimize waste. Durable design ensures maximum productivity with reduced maintenance, achieving eco-friendly operations without compromising industrial-grade results.

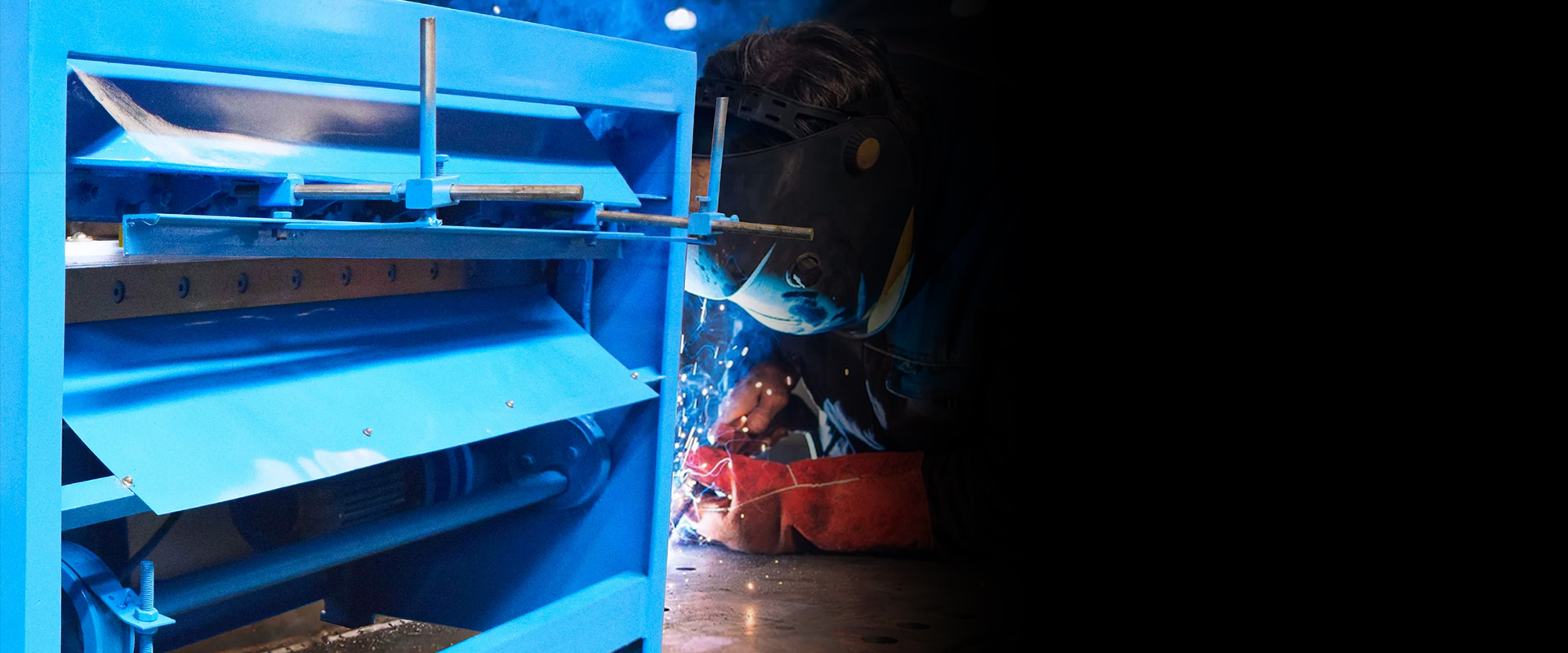

Electric shearing machines feature robust construction with heavy-duty frames and precision-engineered components, ensuring long-term durability. High-quality materials and advanced welding techniques resist wear, deformation, and corrosion, supporting high-frequency industrial use with minimal maintenance for consistent cutting performance.

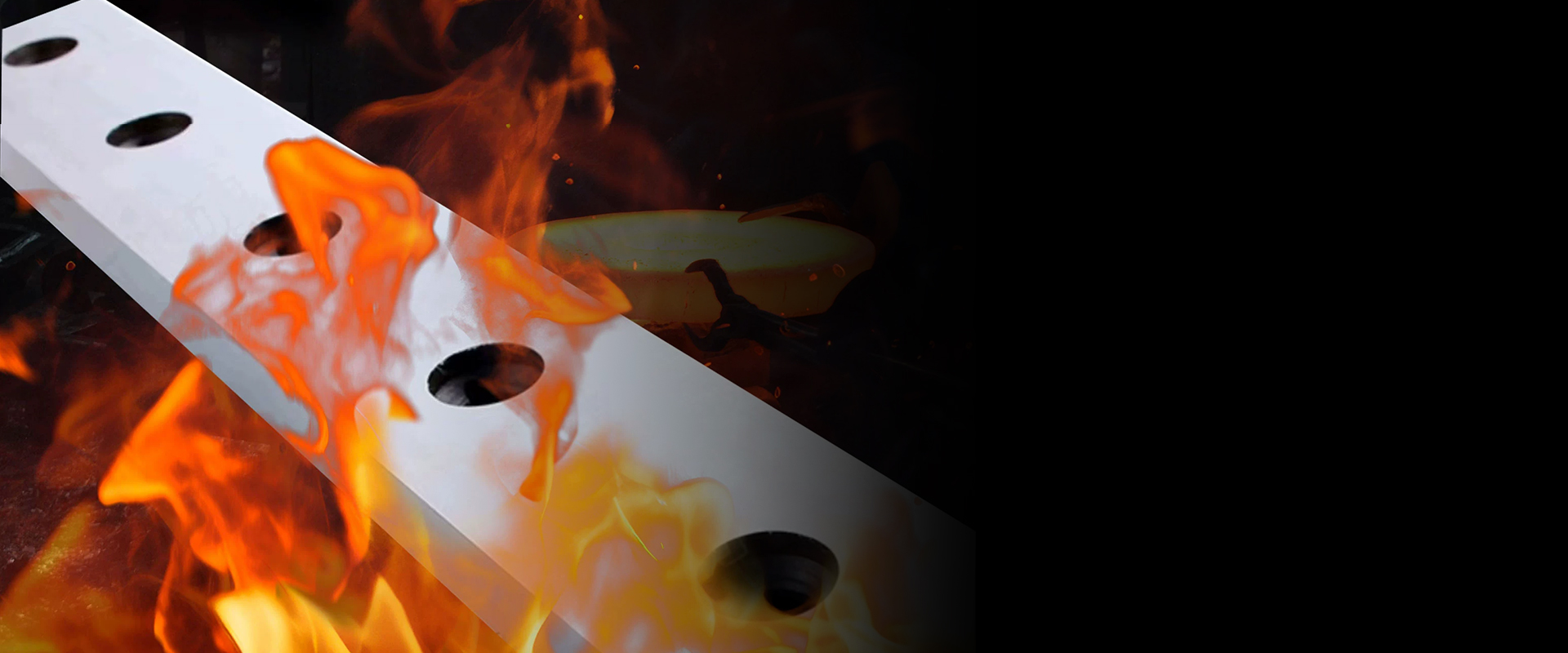

Electric shear blades, crafted from high-hardness alloy steel, undergo precision heat treatment for exceptional wear resistance and edge retention. Their durable design ensures consistent, clean cuts across metals (steel, aluminum, etc.) with minimal maintenance, reducing downtime and enhancing productivity in industrial operations.
Electric guillotine shears adapt to diverse materials (stainless steel, aluminum, copper, galvanized steel, etc.) via high efficiency motor and adjustable parameters. Precision-ground blades ensure clean cuts with minimal deformation, ideal for varied industrial needs in manufacturing, automotive, and construction sectors.
