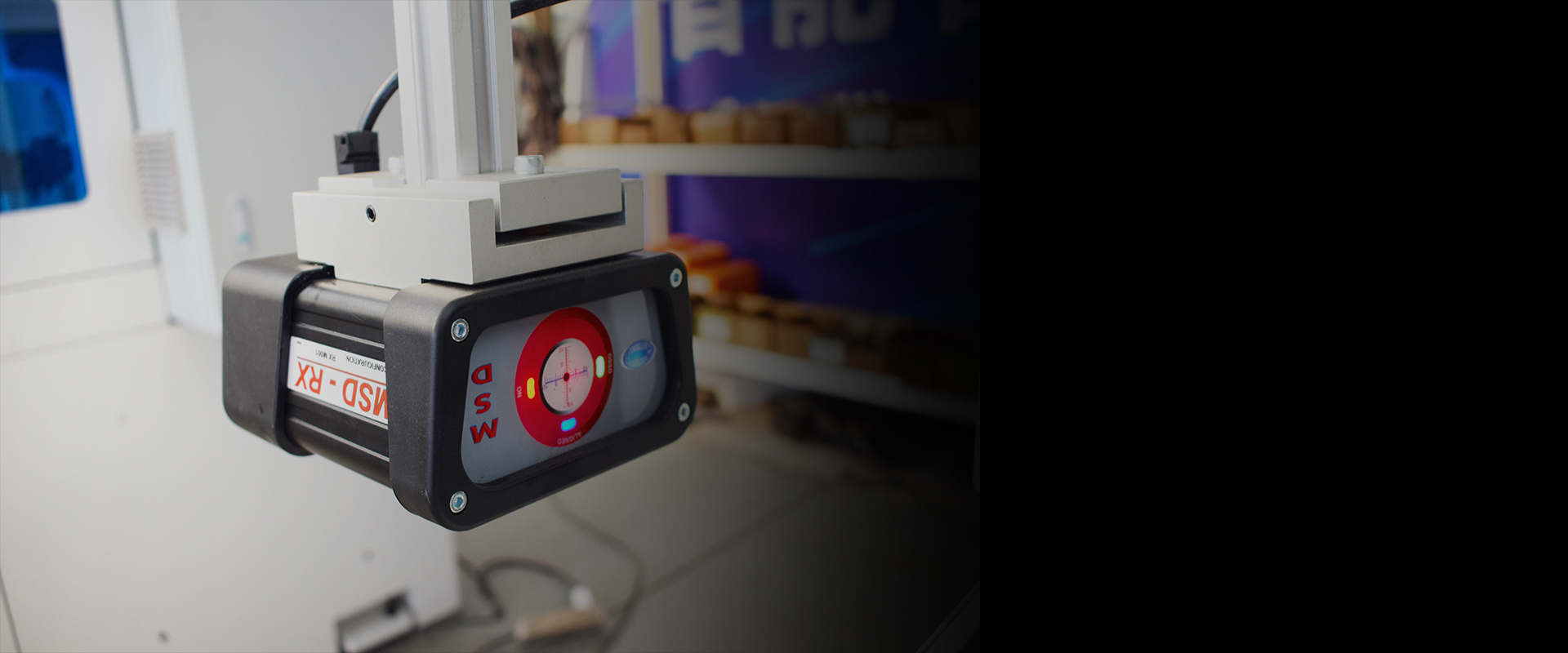

The MSD laser safety system prevents hazards from the rapid upper beam movement of press brakes. Installable on both upper/lower beam worktables, it generates a detection zone along the press brake's length through opposing laser beam pairs (transmitter/receiver units)
below the tool tip, creating full-length protective coverage.
Visible laser beam source: 650 nm
Beam divergence: < 0,2 mrad
Laser classification: class 1 M
Diameter of the laser beam at TX output = 6 mm;
Response time: 14 ms;
Detection capacity 6 mm;
Case protection degree: IP 65;
Operating temperature 0°C -50°C.
