Cybelec CNC Control System​

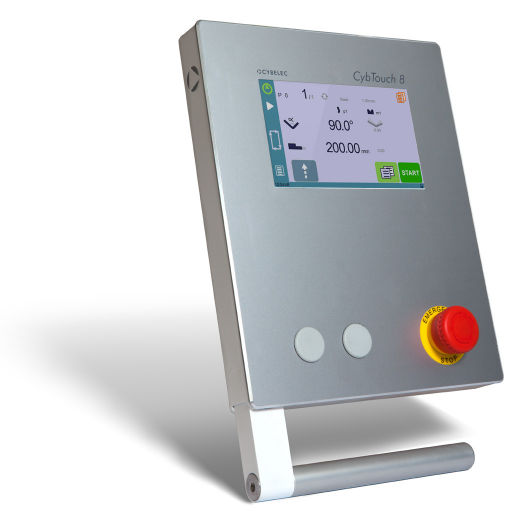

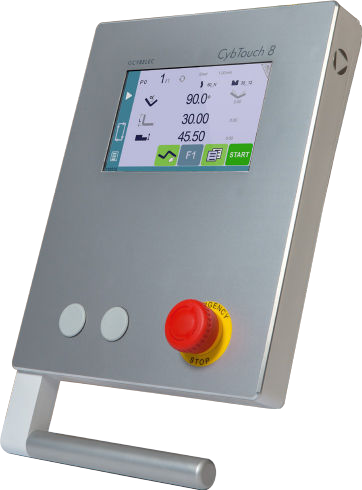

CYBELEC CybTouch 8 PS 2D graphic CNC System

CybTouch 8 PS is intended specifically for synchronized press-brakes.As part of the CybTouch range, it has an intuitive and vivid color touch screen and a high integration of functions.

• 7” color graphic CRT screen

• 2D graphic profile creation with manual sequencing

• Up to 4 axes (Y1,Y2 + 2-axes)

• Bend allowance calculation.

• Pressure – crowning calculation.

• CNC Crowning control

• Angle and back gauge correction.

• Delivered with PC1200 offline software.

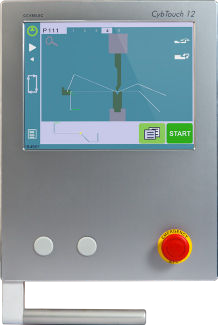

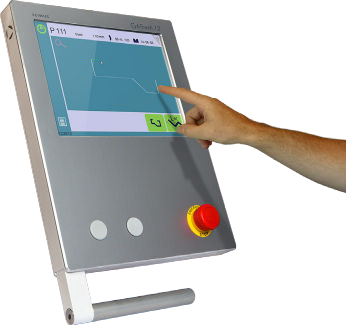

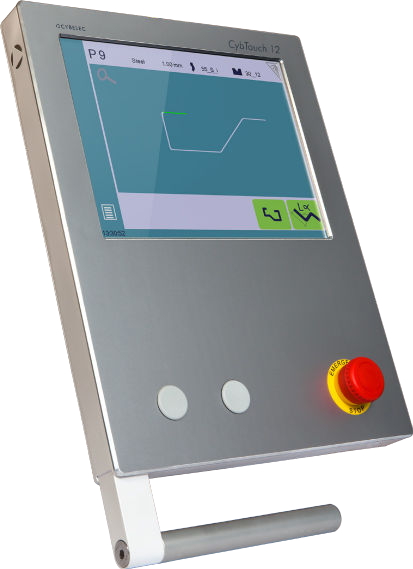

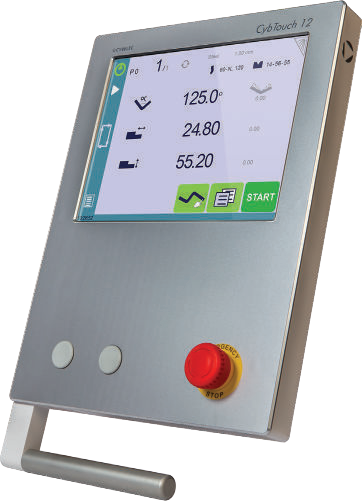

CYBELEC CybTouch 12 PS 2D graphic CNC System

As the entire CybTouch numerical control range, CybTouch 12 PS features an intuitive touch screen user interface, offering a high integration of functions.

• 12” color graphic with fully touch screen

• Touch 2D graphic part creation with manual sequencing

• Up to 4 axes (Y1,Y2 , X, R-axes)

• Bend allowance calculation.

• Pressure – crowning calculation.

• Modulable tools for each part or bend.

• Angle and back gauge correction.

• Delivered with PC-ModEva offline software

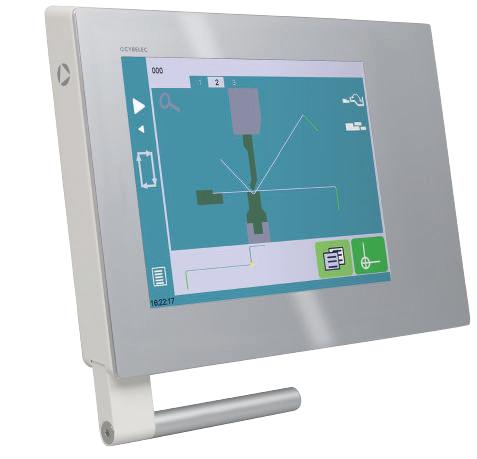

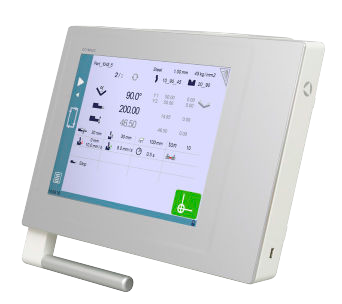

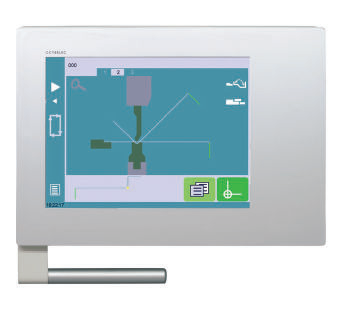

CYBELEC CybTouch 15 PS 2D graphic CNC System

The CybTouch 15 PS is a 2D numerical control specifically dedicated for entry to mid-range CNC press-brakes. It comes in a compact housing, similarly to the well-known CybTouch range in the field, but offering a bigger touchscreen and a new horizontal design.

• 15” color graphic with fully touch screen

• Touch 2D graphical profile drawing and precise 2D program creation

• Up to 6 axes (Y1,Y2 , X, R ,Z1 , Z2-axes)

• Automatic bending sequence calculation

• Tandem management.

• Modulable tools for each part or bend.

• Angle and back gauge correction.

• VisiTouch 2D or VisiTouch MX offline software.

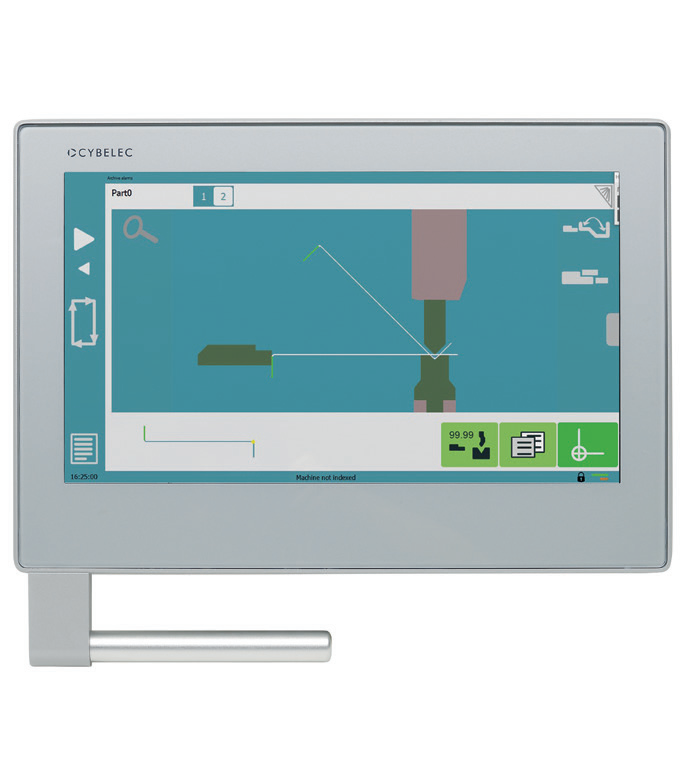

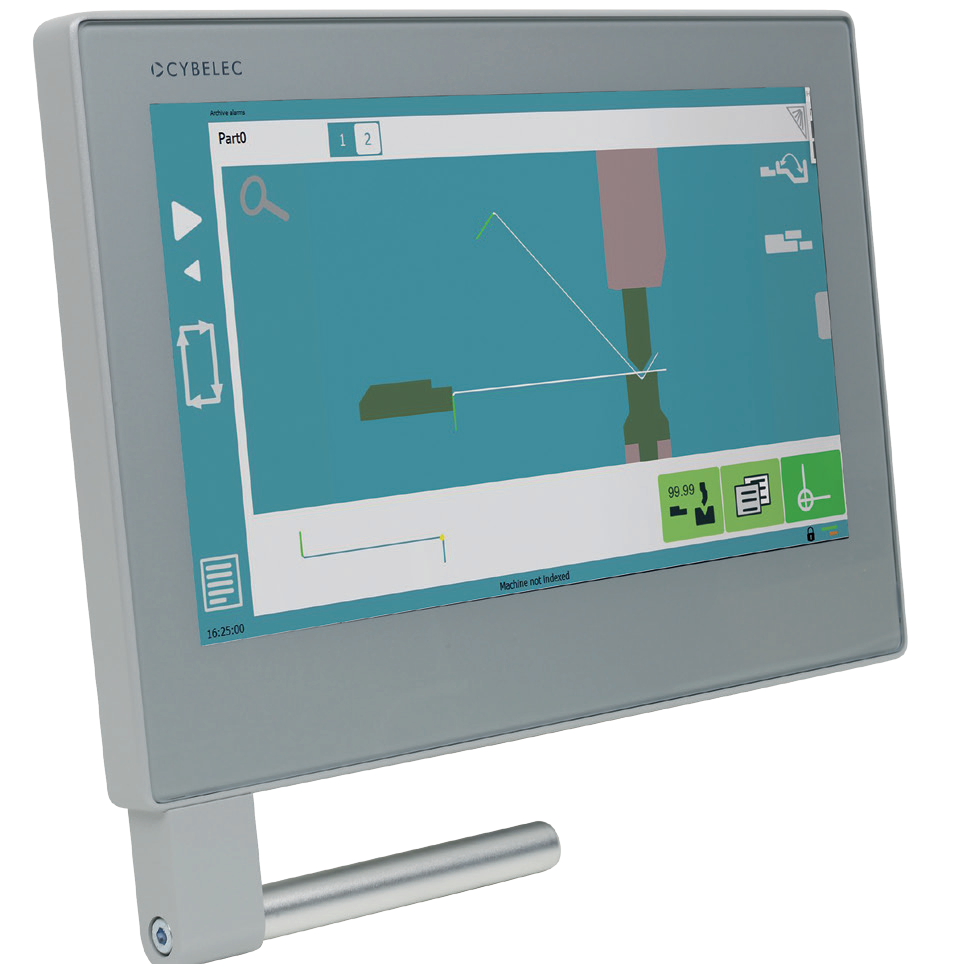

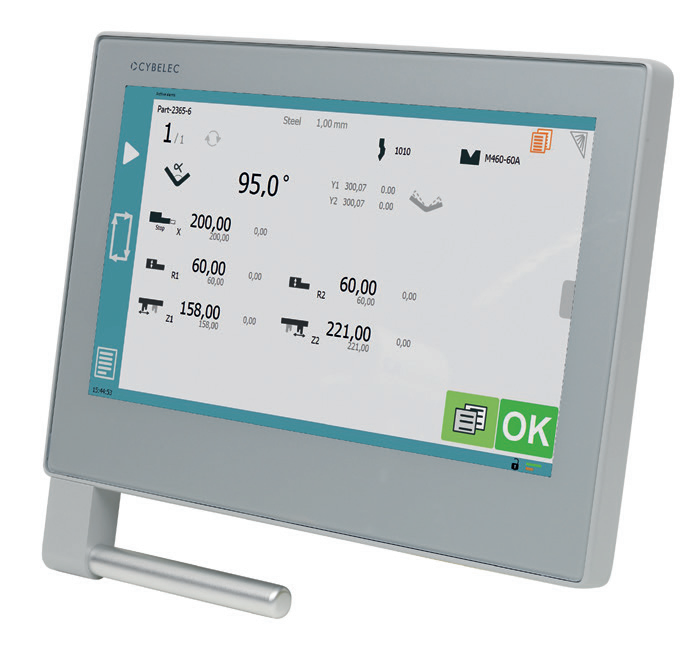

CYBELEC VisiTouch 19 2D and 3D graphical CNC System

The VisiTouch 19 and VisiTouch 19 MX is a 2D and 3D graphical numerical control for CNC press brakes. It aims at making the operator’s work easier, even for demanding programming and setting-up tasks.

• 19” touch screen modern streamlined glass surface

• Touch 2D graphical profile drawing and precise 2D program creation

• Easy operating thanks to the user-friendly HMI

• Automatic bending sequence calculation

• Internal backup and restore functions

• Modulable tools for each part or bend.

• Angle and back gauge correction.

• VisiTouch 2D or VisiTouch MX offline software.
