Precisely rolls 0.5 - 25mm metal plates, highly efficient in forming, equipped with servo drive for energy saving and durability, and equipped with intelligent detection and safety protection. Widely applied in the fields of wind power, ships, and mechanical manufacturing!
LISTEN brand plate rolling machine rolls metal sheets into cylindrical or conical shapes using adjustable rollers.
Structure: Features a robust frame with three or four hardened steel rollers (top/bottom or pyramid configuration) to handle materials up to 25mm thick.
Drive Systems: Hydraulic or motorized drives provide torque for rolling high-strength metals like steel, stainless steel, and aluminum.
Precision Control: CNC or manual adjustments regulate roller pressure and position, achieving radii with ±1mm accuracy.
Material Versatility: Processes plates, pipes, and profiles for tanks, silos, ship hulls, and architectural curves.
Safety: Emergency stops, overload protection, and enclosed gears ensure operator safety.
Size Range: Machines span widths from 1m to 6m, accommodating small tubes to large industrial vessels.
Advantages: Symmetrical rolling reduces stress, while pre-bending capabilities eliminate flat edges. Ideal for energy, construction, and aerospace industries, plate rollers combine power, precision, and adaptability for complex metal forming tasks.
LISTEN Brand Plate Rolling Machines feature robust welded frames and CNC-controlled hydraulic systems for high-precision bending of steel, aluminum, and alloys. Equipped with synchronized rollers, they minimize residual straight edges and enable one-pass forming for cylindrical, conical, and curved shapes. Ideal for shipbuilding, pipelines, and structural fabrication, they offer energy efficiency, CE/ISO compliance, and user-friendly operation with advanced safety mechanisms
The LISTEN brand plate rolling machine is engineered to deliver unmatched precision, durability, and efficiency in metal forming applications. Here’s a detailed analysis of its competitive advantages for industries requiring high-performance plate bending solutions:
1. Superior Precision and Control
LISTEN plate rollers feature CNC hydraulic synchronization systems and automatic curvature adjustment, ensuring bending accuracy within ±0.1 mm/m. Advanced pre-programmed bending modes adapt to materials ranging from thin sheets to heavy plates , ideal for cylindrical, conical, or complex shapes.
2. Robust Construction and Load Capacity
Built with high-strength alloy frames and hardened rollers, LISTEN machines handle extreme workloads
Double-gear drive systems and anti-deflection designs maintain structural integrity, even under prolonged high-pressure operations.
3. Energy Efficiency and Eco-Friendly Operation
LISTEN integrates variable-speed hydraulic pumps, reducing energy consumption by 30–40% compared to conventional models. The closed-loop oil circulation system minimizes heat and noise pollution, aligning with green manufacturing standards.
4. Versatility and Material Compatibility
Processes diverse metals, including carbon steel, stainless steel, aluminum, and titanium alloys, across industries like shipbuilding, aerospace, and construction.
Adjustable roller gap settings and quick-change tooling enable seamless transitions between different plate thicknesses and bending radii.
5. User-Centric Automation and Safety
Touchscreen CNC interfaces simplify setup and real-time monitoring of bending parameters.
Automatic plate alignment and anti-collision sensors enhance operational safety, while emergency stop systems and safety guards comply with ISO and CE certifications.
6. Durability and Low Maintenance
Hardened and ground rollers with wear-resistant coatings extend service life , even in abrasive environments.
Self-lubricating bearings and predictive maintenance alerts reduce downtime and long-term ownership costs.
7. Customization and Global Support
LISTEN offers tailored solutions, such as asymmetric rolling configurations, NC crowning adjustments, meet specialized production demands. 24/7 technical support, on-site training, and worldwide spare parts network ensure uninterrupted productivity.
The type of plate bending machine varies depending on the field of use, from the transmission point of the mechanical type and hydraulic type. From the number of rolls,
it is divided into three-roller and four-roller. The three-roller is divided into a symmetrical three-roller bending machine, asymmetrical three-roller bending machine,
horizontal downward adjustment three-roller bending machine, W11S upper-roller universal bending machine, and four-roller CNC turning machine. In terms of the
development of the plate bending machine, the upper-roller universal type is the most backward, and the four-roller CNC bending machine is the most advanced.
Currently, the most commonly used in the market are the W11F partial Samsung plate bending machine, W11S upper-roller universal plate bending machine, W11
mechanical symmetrical plate bending machine, and W12 four-roller plate bending machine.
The mechanical type is divided into W11F asymmetrical plate rolling machine and W11 series symmetrical plate rolling machine.

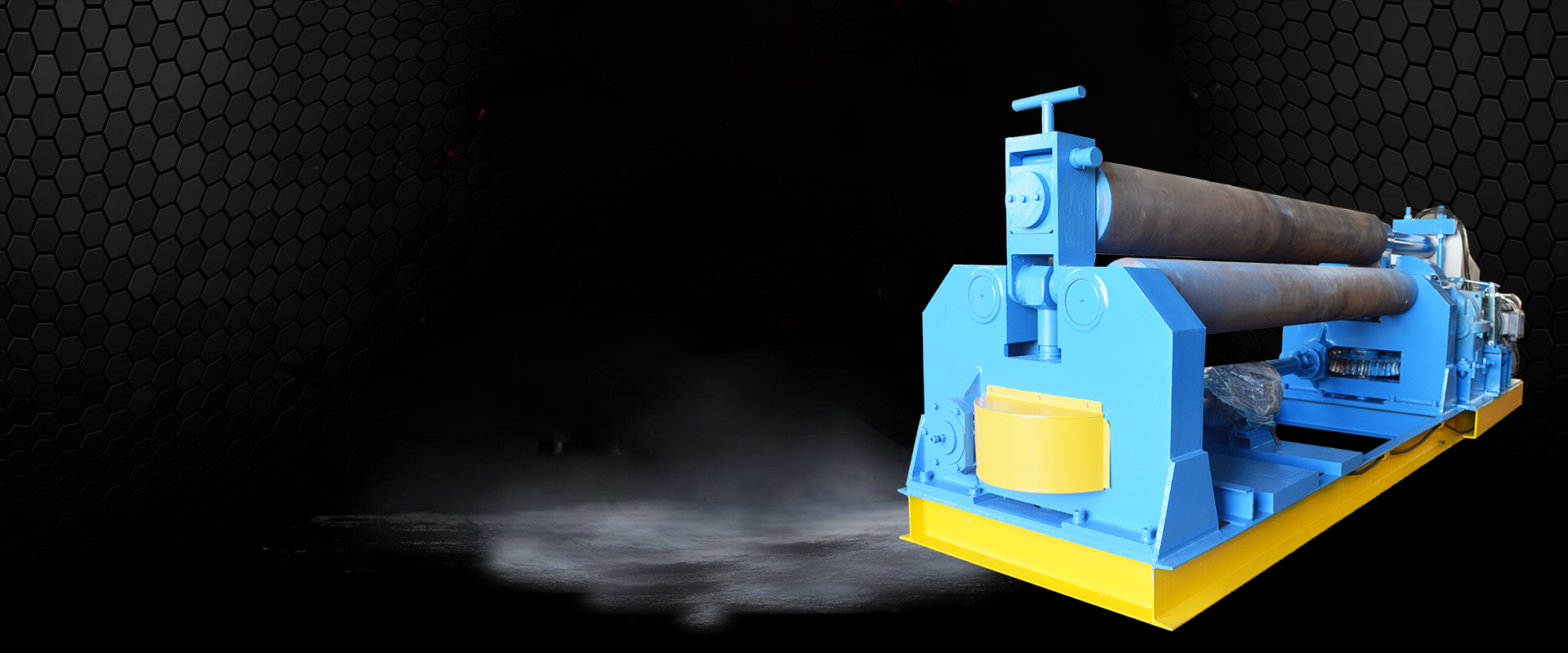

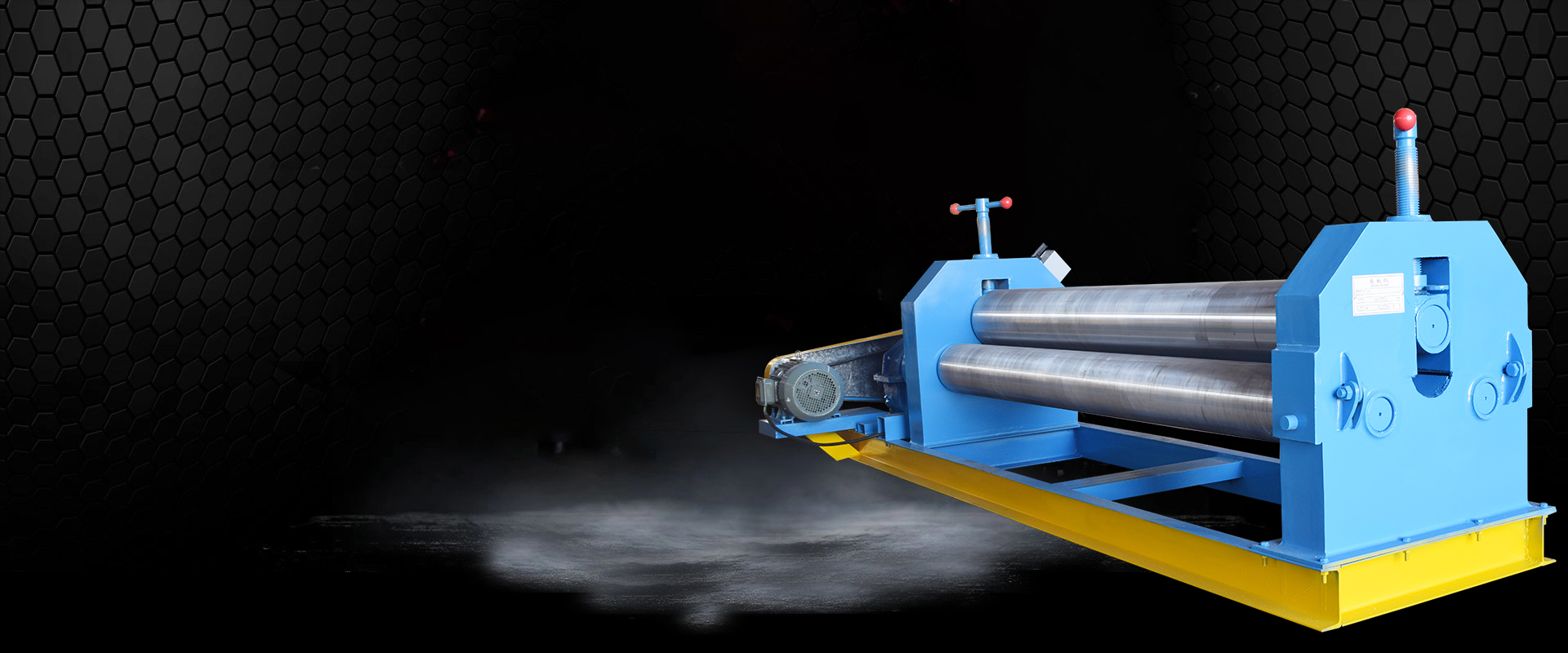

Performance and characteristics of W11 series symmetrical plate rolling machine:
The structure of the machine is three-roller symmetrical type. The upper roller moves vertically at the symmetrical position of the two lower rollers. It is obtained by the transmission of the screw and screw nut. The two lower rollers rotate through the output gear of the reducer and the lower roller. The gears mesh to provide torque for the rolled sheet. The disadvantage of this machine is that the end of the plate needs to be pre-bent with other equipment.
Performance and characteristics of W11F asymmetrical plate rolling machine:
The structure of the machine is a three-roller asymmetrical type. The upper roller is the main drive, and the lower roller moves vertically to clamp the plate. The lower roller gear meshes with the upper roller gear and serves as the main drive at the same time; the side rollers are tilted and lifted. , With dual functions of pre-bending and rolling. Compact structure, convenient operation and maintenance.
The hydraulic type is divided into W11S upper roll universal type and W12 four-roller plate bending machine：
The main features of W11S upper roll universal type: The upper roll universal bending machine adopts the upper roll lifting hydraulic drive and horizontal movement (mechanical transmission), driven by the lower roll, and the electric centralized.
In the W11 series Symmetrical plate rolling machine, the upper roller of the W11 series Symmetrical scale rolling machine uses the hydraulic oil in the hydraulic cylinder to act on the piston to move vertically at the central symmetrical position of the two lower rollers. Provide torque for rolled sheets. The flat plastic metal plate of the bending machine passes between the three working rolls (two lower rolls and one upper roll) of the bending machine. With the help of the lower pressure of the upper roll and the rotation of the lower roll, the metal plate is passed through multiple passes. Continuous bending (the inner layer is compressed and deformed, the middle layer is unchanged, and the outer layer is stretched and deformed) to produce permanent plastic deformation and roll into the required cylinder, cone, or part of them. The disadvantage of this hydraulic three-roller bending machine is that the end of the plate needs to be pre-bent with the help of additional equipment. This rolling machine is suitable for large, more than 50mm thick devices. A row of fixed idlers is added under the two lower rollers to shorten the span of the two lower rollers, thereby improving the precision of the rolled workpiece and the machine’s overall performance.
