Provide automatic roller adjustment and CNC-controlled precision for reliable, fast bending. Costs are decreased by robust construction, energy efficiency, and little physical labor. CE/ISO approved, perfect for pipelines, ships, and steel/aluminum structural fabrication. guarantees low maintenance, accuracy, and productivity.
| Model | Roll thickness(mm) | Roll width(mm) | Upper roller diameter*wall thickness(mm) | Lower roller diameter*wall thickness(mm) | Center distance of lower roller(mm) | Minimum roll diameter(mm) | Main motor power(kw) | Main reducer model | Auxiliary motor power(kw) | Auxiliaryreducer model | Dimensions(mm) |
| 8x2000(hollow) | 8 | 2000 | 180x20 | 168x14 | 290 | 400 | 5.5 | JZQ250 | 3 | JZQ200 | 3300x1100x1100 |
| 8x2000(solid) | 8 | 2000 | 170 | 150 | 270 | 380 | 5.5 | JZQ350 | 3 | JZQ200 | 3300x1100x1100 |
| 12x2000(hollow) | 12 | 2000 | 245x18 | 219x14 | 380 | 650 | 7.5 | JZQ350 | 4 | JZQ200 | 3350x1100x1200 |
| 12x2000(solid) | 12 | 2000 | 200 | 180 | 300 | 650 | 7.5 | JZQ350 | 4 | JZQ200 | 3350x1100x1200 |
| 12x2500(hollow) | 12 | 2500 | 245x22 | 219x16 | 380 | 800 | 11 | JZQ350 | 5 | JZQ250 | 3900x1100x1200 |
| 12x2500(solid) | 12 | 2500 | 210 | 180 | 360 | 700 | 11 | JZQ400 | 4 | JZQ250 | 3900x1100x1200 |
| 16x2000(hollow) | 16 | 2000 | 273x22 | 245x17 | 410 | 700 | 11 | JZQ400 | 5 | JZQ250 | 3400x1100x1200 |
| 16*2000(solid) | 16 | 2000 | 240 | 190 | 400 | 700 | 11 | JZQ400 | 5 | JZQ250 | 3400x1100x1200 |
| 16x2500(hollow) | 16 | 2500 | 273x24 | 245x18 | 410 | 800 | 11 | JZQ400 | 5 | JZQ250 | 4800x1200x1200 |
| 16*2500(solid) | 16 | 2500 | 260 | 220 | 410 | 780 | 15 | JZQ400 | 5.5 | JZQ250 | 4800x1200x1200 |
| 20x2000(hollow) | 20 | 2000 | 299x30 | 273x22 | 430 | 900 | 18 | JZQ500 | 7.5 | JZQ350 | 4300x1200x1200 |
| 20*2000(solid) | 20 | 2000 | 280 | 230 | 410 | 800 | 18 | JZQ500 | 7.5 | JZQ350 | 4300x1200x1200 |
| 20x2500(hollow) | 20 | 2500 | 325X35 | 299X23 | 480 | 1000 | 22 | JZQ500 | 7.5 | JZQ350 | 4800x1200x1200 |
| 20*2500(solid) | 20 | 2500 | 310 | 260 | 440 | 850 | 22 | JZQ500 | 11 | JZQ350 | 4800x1200x1200 |
| 25x2500(hollow) | 25 | 2500 | 425x45 | 377x35 | 600 | 1100 | 22 | JZQ650 | 11 | JZQ400 | 5200x1400x1400 |
| 25*2500(solid) | 25 | 2500 | 370 | 300 | 550 | 950 | 22 | JZQ650 | 11 | JZQ400 | 5200x1400x1400 |
The control panel of the fully - automatic mechanical three - roll plate rolling machine features start/stop buttons, mode switches, and indicator lights. It enables precise operation, real - time status monitoring, and ensures safety. Its advantages lie in user - friendliness and high - efficiency operation.

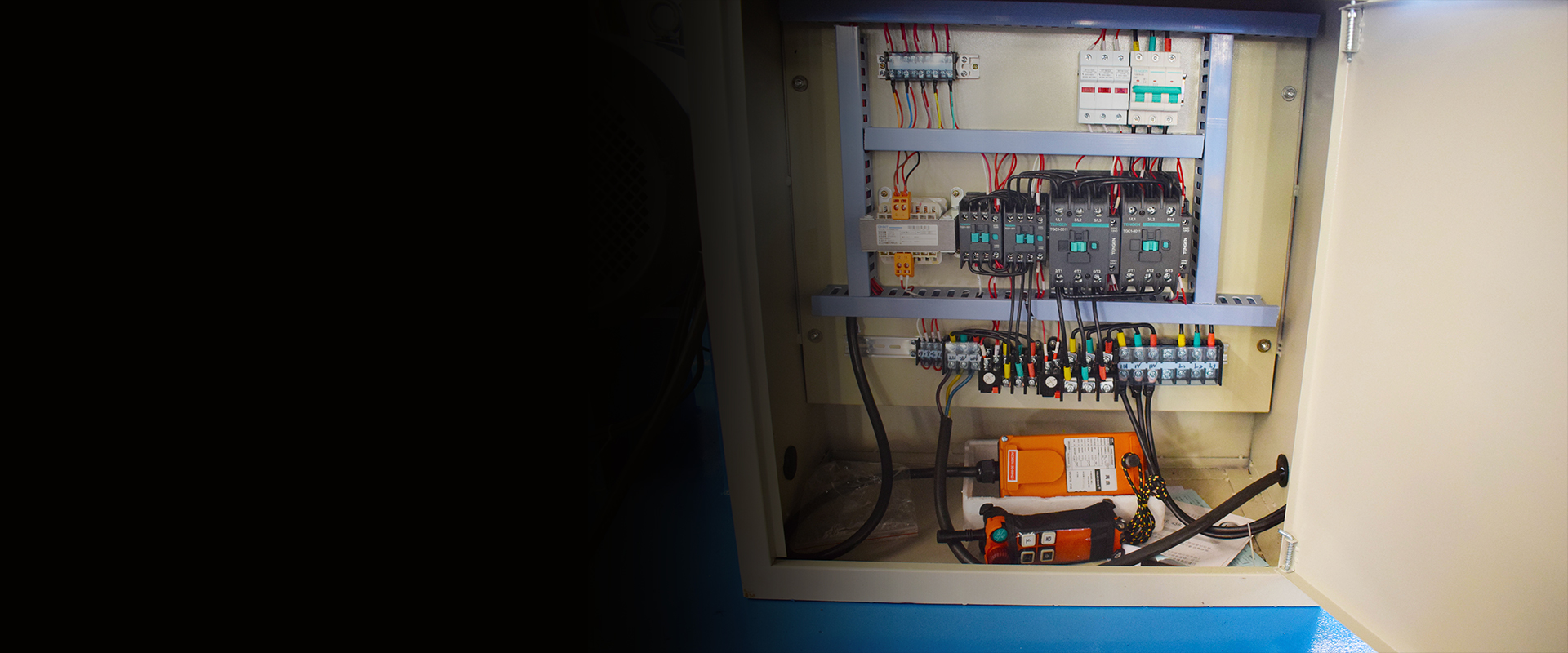

The electrical system of the fully - automatic mechanical three - roll plate rolling machine integrates PLC control, motor drives, and sensors. It enables precise motion control, real - time status monitoring, and safety protections like overload and limit switches. Advantages include high automation, reliability, and easy maintenance for efficient operation.

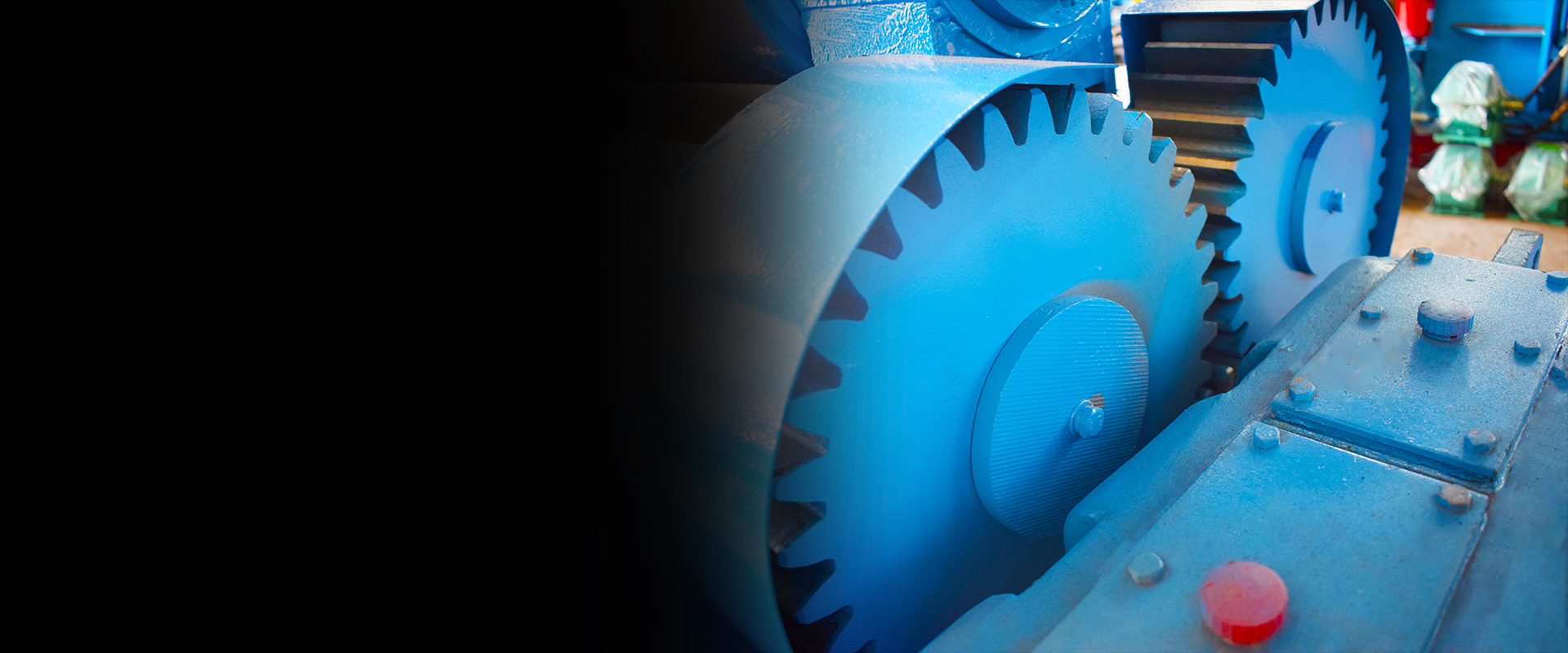

The gears in a fully - automatic mechanical three - roll plate rolling machine are made of high - strength alloy steel, ensuring durable and stable power transmission. Their precise meshing provides uniform rotational force, enabling smooth roll coordination. Advantages include high torque capacity, minimal backlash, and long service life, ensuring consistent bending accuracy and efficiency.

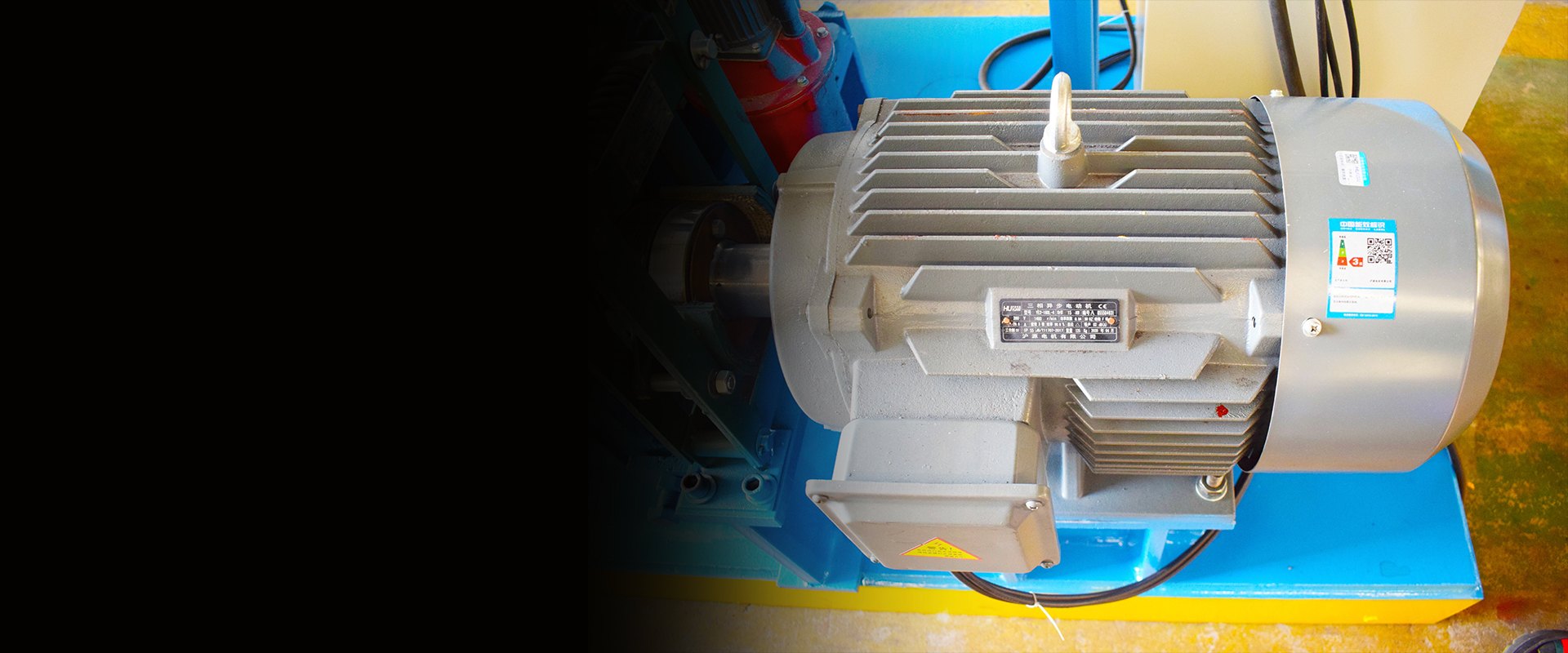

Equipped with high-efficiency motors, they deliver robust torque and energy savings for continuous heavy-duty bending. CE/ISO-certified, integrated with CNC controls for precision automation. Durable, low-maintenance, and ideal for high-volume tasks in shipbuilding, pipelines, and structural steel industries.

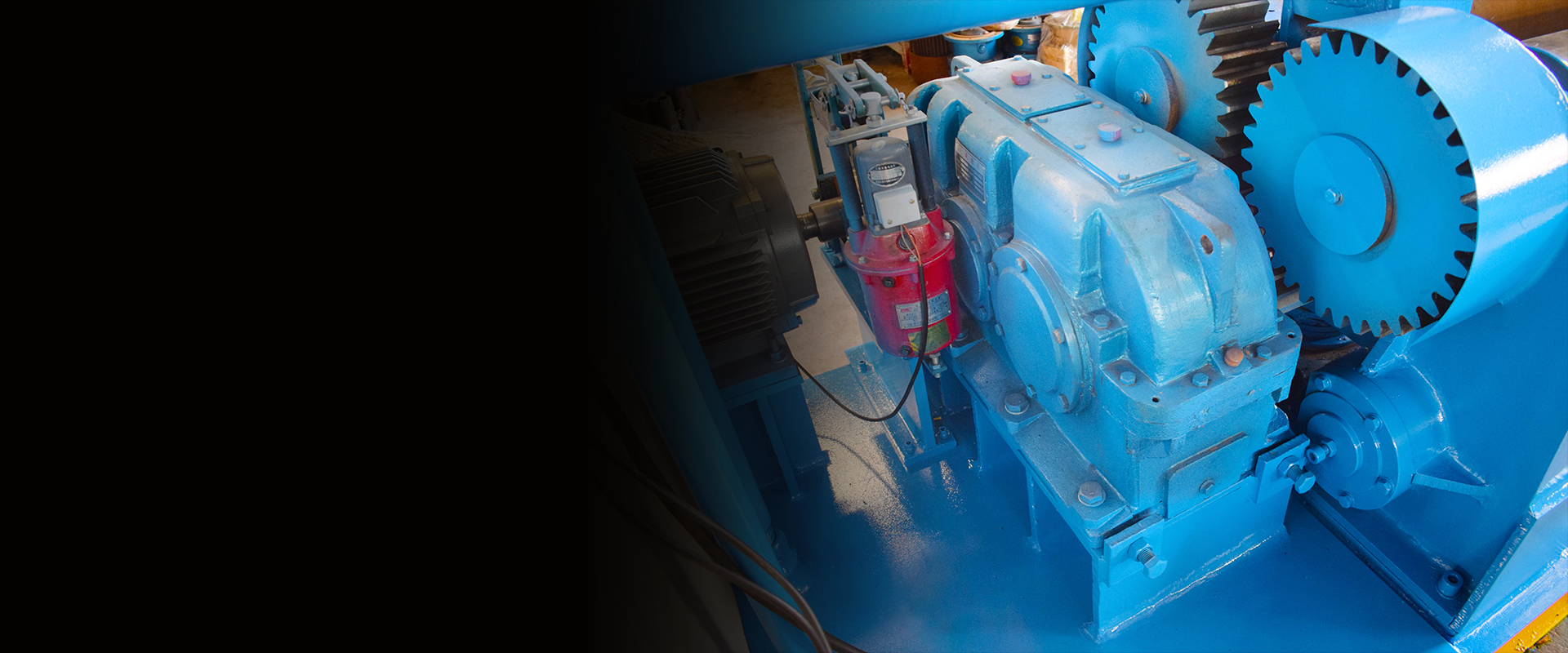

Equipped with high-efficiency motors, they deliver robust torque The reducer in a fully - automatic mechanical three - roll plate rolling machine is a robust gear unit that transfers motor power to rolls, reducing speed and increasing torque. It ensures stable, low - noise operation with high efficiency, durability, and precise motion control, enabling reliable bending of various plate thicknesses and materials.

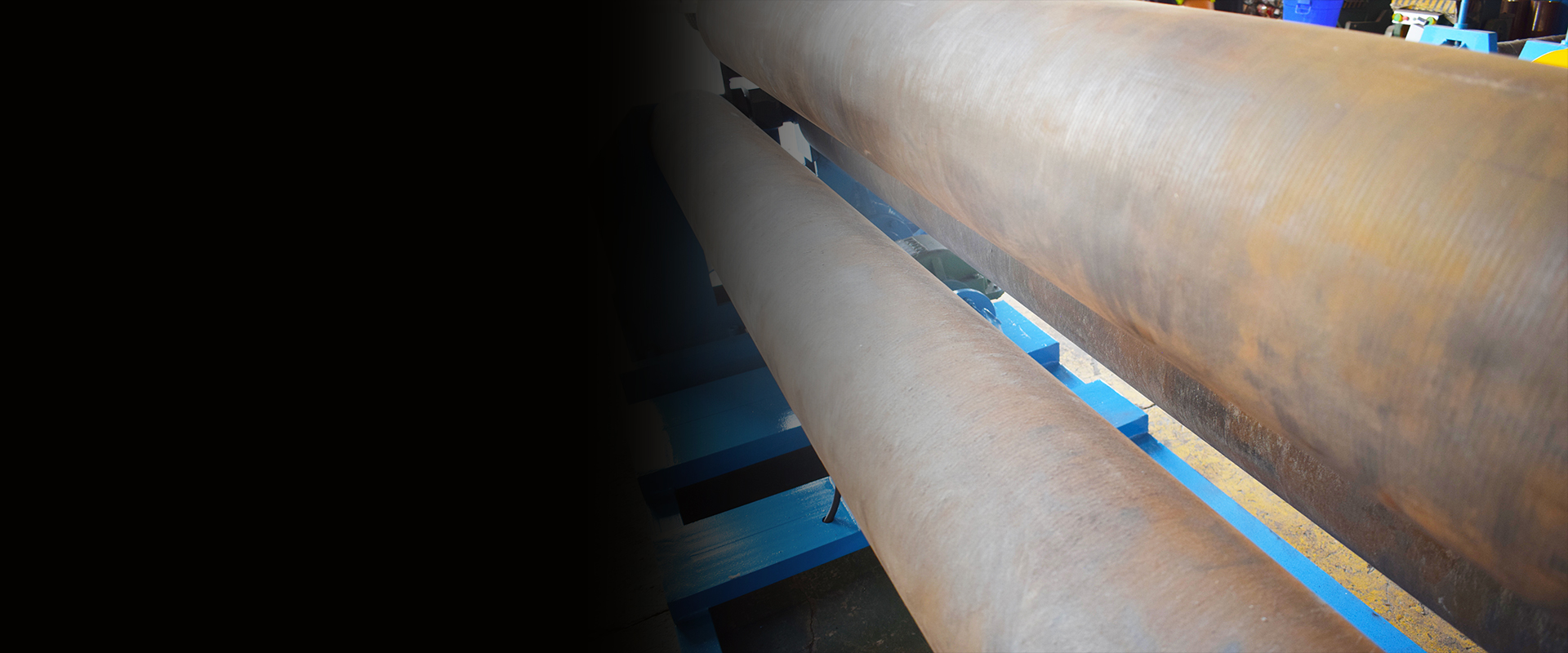

The rollers of a fully - automatic mechanical three - roll plate rolling machine are robust and precisely engineered. They offer consistent bending force, high dimensional accuracy, and wide adaptability to different plate materials, ensuring efficient and high - quality bending operations.
