High-precision ball screws, servo motors ensure positioning accuracy; linear guides reduce friction; encoders, controllers enable real-time feedback/synchronization; reinforced supports prevent deformation.

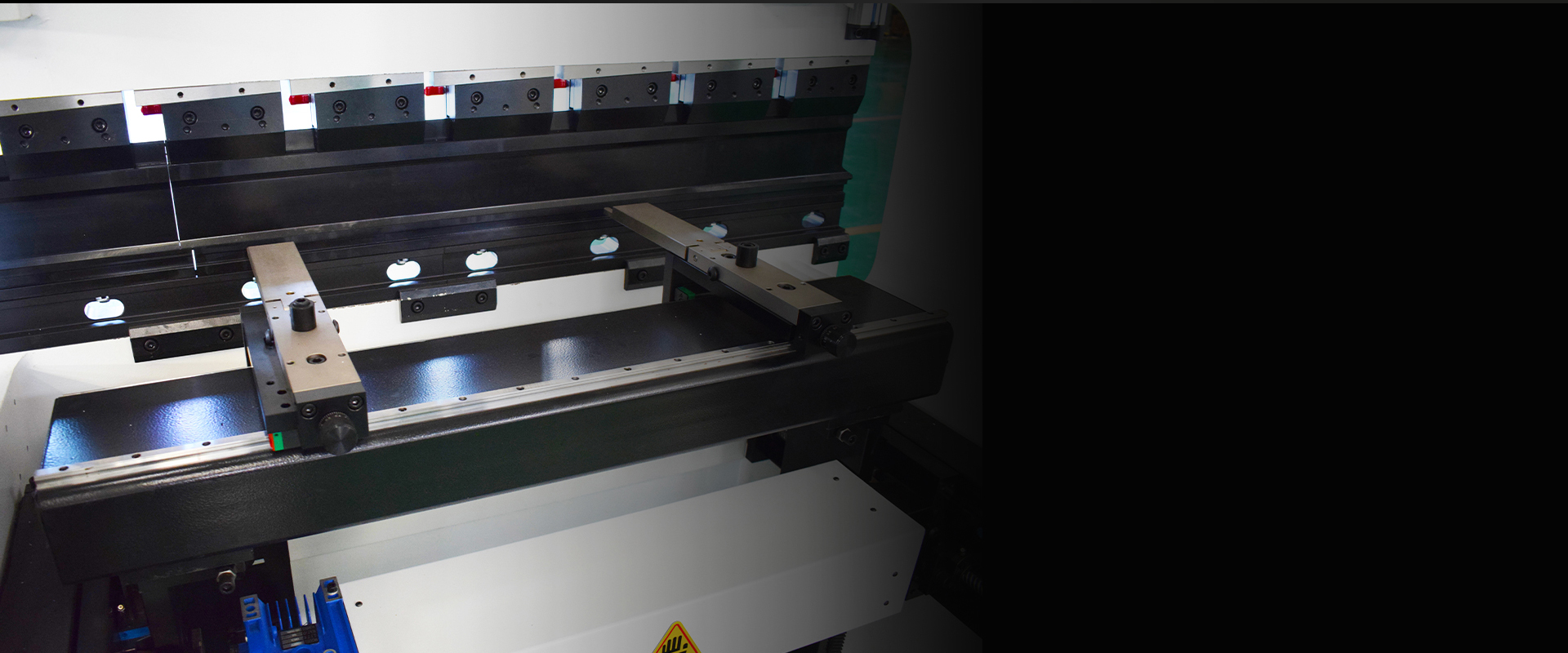

1. Press Brake 2-Axis CNC BackGauge with X, R-Axis

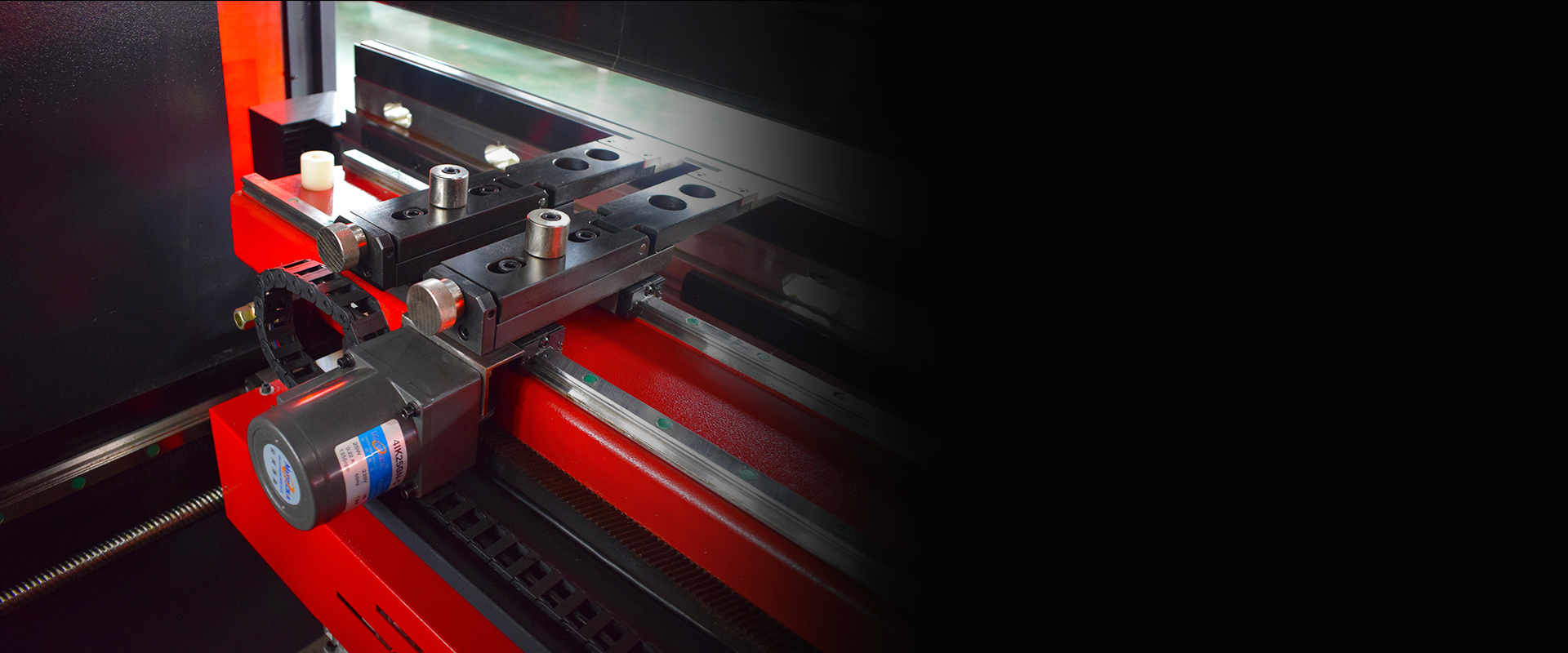

2. Press Brake 4-Axis CNC BackGauge with X, R, Z1, Z2-Axis

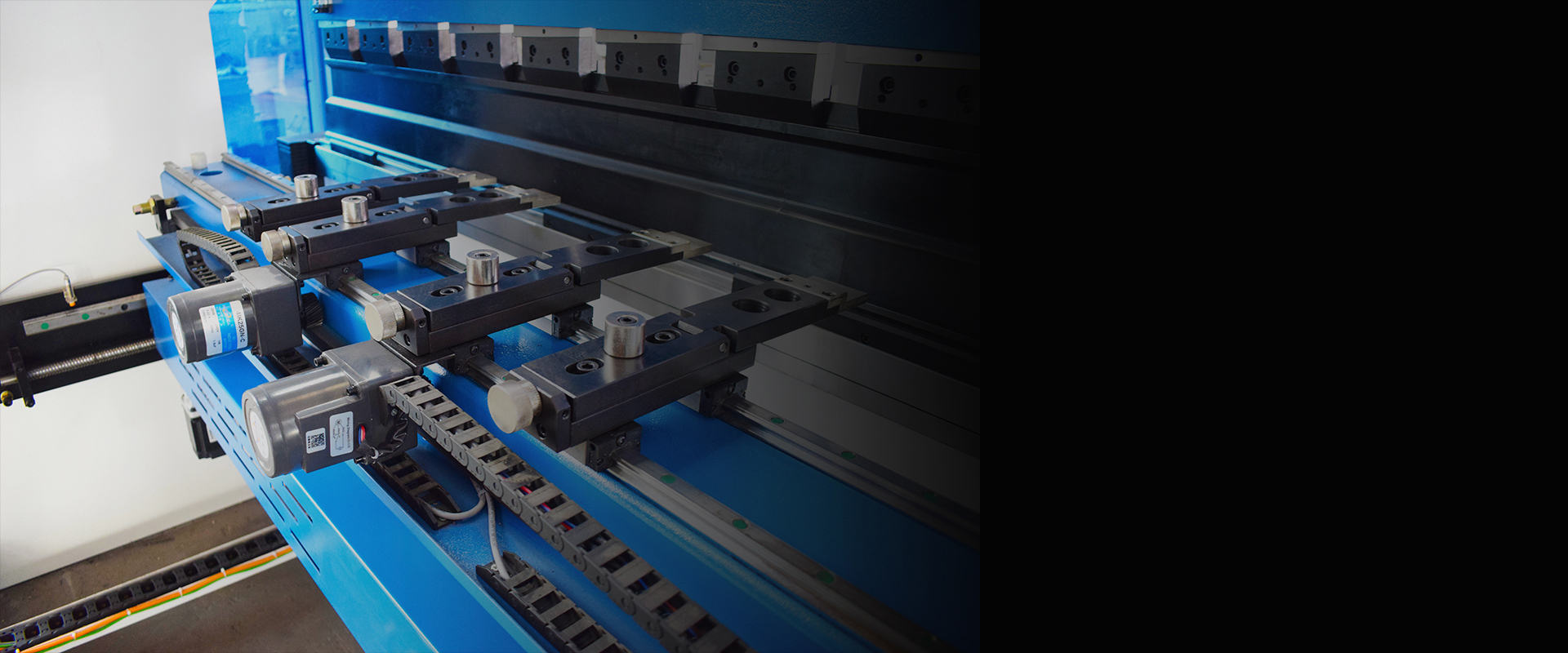

3. Press Brake 5-Axis CNC BackGauge with X, R, Z1, Z2, Delta X2-Axis
4. Press Brake 6-Axis CNC BackGauge with X1, X2, R1, R2, Z1, Z2-Axis
Ball screws and linear guide on X, R-axis
Axis X speed 500 mm/s.
Manual Z1, Z2-axis with HIWIN linear guide
Mechanical accuracy ± 0.03 mm.
Fingers with double stop and micrometric adjustment.
Ball screws and linear guide on X, R-axis
Precision belts and YYC rack on axes Z1‐Z2.
Fingers with double stop and micrometric adjustment.
Mechanical accuracy ± 0.03 mm.
Axes Z1‐Z2 speed 1000 mm/s.
Axis X speed 500 mm/s.
Ball screws and linear guide on X, R-axis
Precision belts and YYC rack on axes Z1‐Z2.
Fingers with double stop and micrometric adjustment.
Mechanical accuracy ± 0.03 mm.
Axes Z1‐Z2 speed 1000 mm/s.
Axis X speed 500 mm/s.
Axis Delta X speed 500 mm/s.
Ball screws and linear guide on X, R-axis
Precision linear guide and YYC rack on axes Z1‐Z2.
Fingers with double stop and micrometric adjustment.
Mechanical accuracy ± 0.03 mm.
Axes R1‐R2 speed 500 mm/s
Axes X1‐X2 speed 600 mm/s. (1000 mm/s optional)
Axes Z1‐Z2 speed 1100 mm/s.
