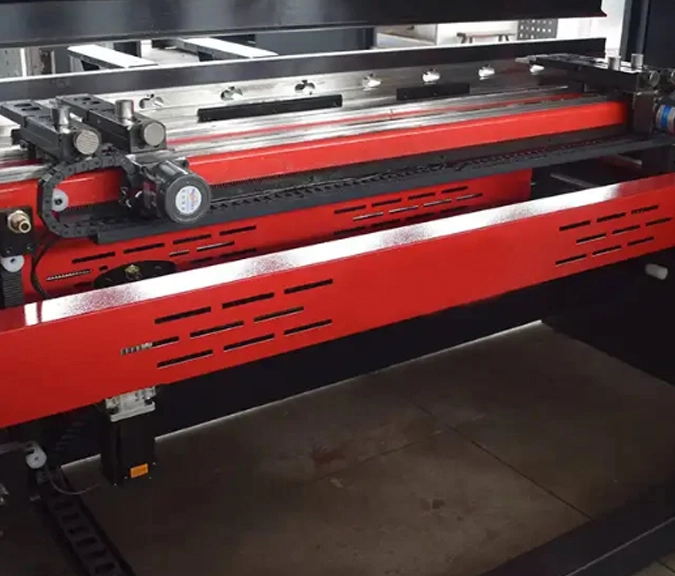

Press Brake 4-Axis CNC BackGauge with X, R, Z1, Z2-Axis
Ball screws and linear guide on X, R-axis
Precision belts and YYC rack on axes Z1‐Z2.
Fingers with double stop and micrometric adjustment.
Mechanical accuracy ± 0.03 mm.
Axes Z1‐Z2 speed 1000 mm/s.
Axis X speed 500 mm/s.
The BGA series offer 2, 4 and 6 axes support brackets to help with all your bending needs – let us help you configure the best solution for your press brake needs.

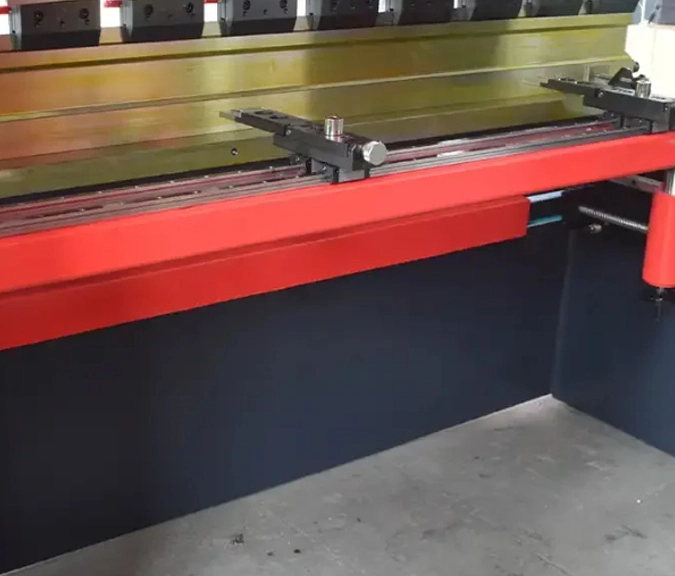

Ball screws and linear guide on X, R-axis
Axis X speed 500 mm/s.
Manual Z1, Z2-axis with HIWIN linear guide
Mechanical accuracy ± 0.03 mm.
Fingers with double stop and micrometric adjustment.
Ball screws and linear guide on X, R-axis
Precision belts and YYC rack on axes Z1‐Z2.
Fingers with double stop and micrometric adjustment.
Mechanical accuracy ± 0.03 mm.
Axes Z1‐Z2 speed 1000 mm/s.
Axis X speed 500 mm/s.
Ball screws and linear guide on X, R-axis
Precision belts and YYC rack on axes Z1‐Z2.
Fingers with double stop and micrometric adjustment.
Mechanical accuracy ± 0.03 mm.
Axes Z1‐Z2 speed 1000 mm/s.
Axis X speed 500 mm/s.

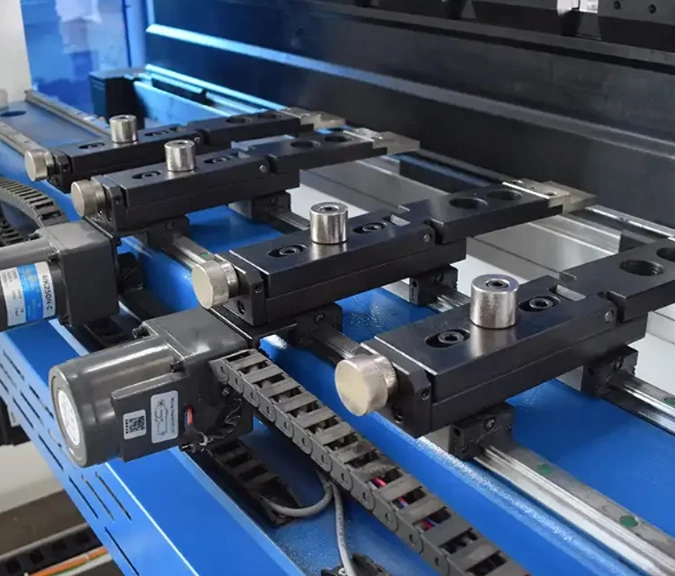

SPA Thin supports system in the fingers.
Load capacity – 30 kg per support.
Ball screws and linear guide on X, R-axis
Precision belts and YYC rack on axes Z1‐Z2.
Fingers with double stop and micrometric adjustment.
Mechanical accuracy ± 0.03 mm.
Axes Z1‐Z2 speed 1000 mm/s.
Axis X speed 500 mm/s.

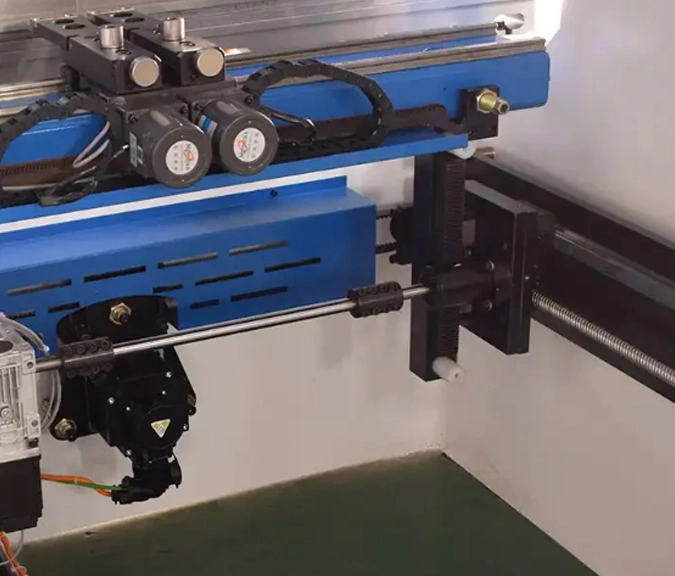

Axis Delta X speed 500 mm/s.
Ball screws and linear guide on X, R-axis
Precision linear guide and YYC rack on axes Z1‐Z2.
Fingers with double stop and micrometric adjustment.
Mechanical accuracy ± 0.03 mm.

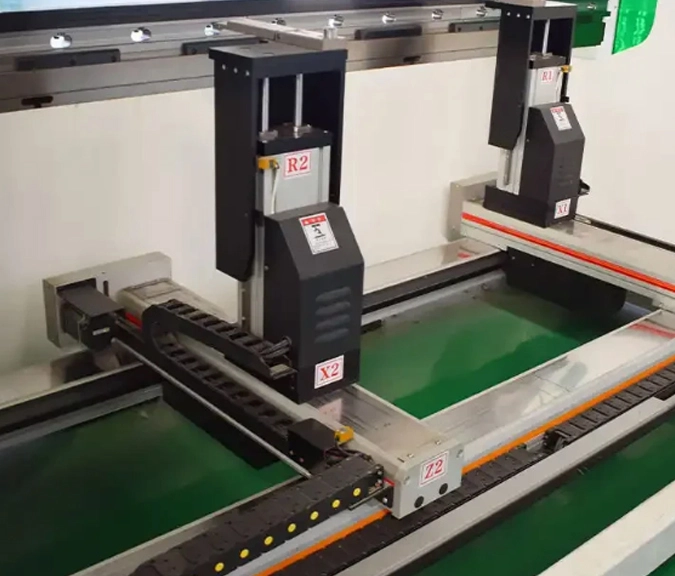

Axes R1‐R2 speed 500 mm/s
Axes X1‐X2 speed 600 mm/s. (1000 mm/s optional)
Axes Z1‐Z2 speed 1100 mm/s.
